Mini / Micro Gimbal Motors

For GoPro gimbals, or gimbals with cameras in the 70 g range, a huge number of suitable brushless gimbal motors had been available from, so to say, day one. But not so for smaller gimbals with cameras in the 45 g range, such as the Mobius, Foxeer Legend, or Runcam. Luckily, the situation has changed dramatically in the last year, and now quite a number of motors in the 180x size-range have become available. This page gives a (potentially incomplete) list. Included are also some motors in the 220x and 260x size-range, which may be chosen for the yaw axis in 3-axis gimbal constructions.

Whenever motors of different brand appear to be identical or to be very similar they are collected together. If not mentioned otherwise, the specs are taken from the data sheets.

Update: Unfortunately, several options have been discontinued in the meantime.

1. Maytech GBM1806 80T, CopterCentre 1806 (discontinued)
2. RCX H1806 80T
3. Multistar 1807 340KV
4. EMax 1806 450KV
5. Skypro 1806 80T (discontinued)
6. Walkera WK-WS-22-001(A/B)
7. AX 2206 140KV
8. Skypro GM2204 100T (discontinued)
9. Skypro GM2206 80T (discontinued)
10. DYS BGM2606 90T, Foxtech 2606 90T
11. DYS BGM2608 70T 8.5, RCTimer 2608 70

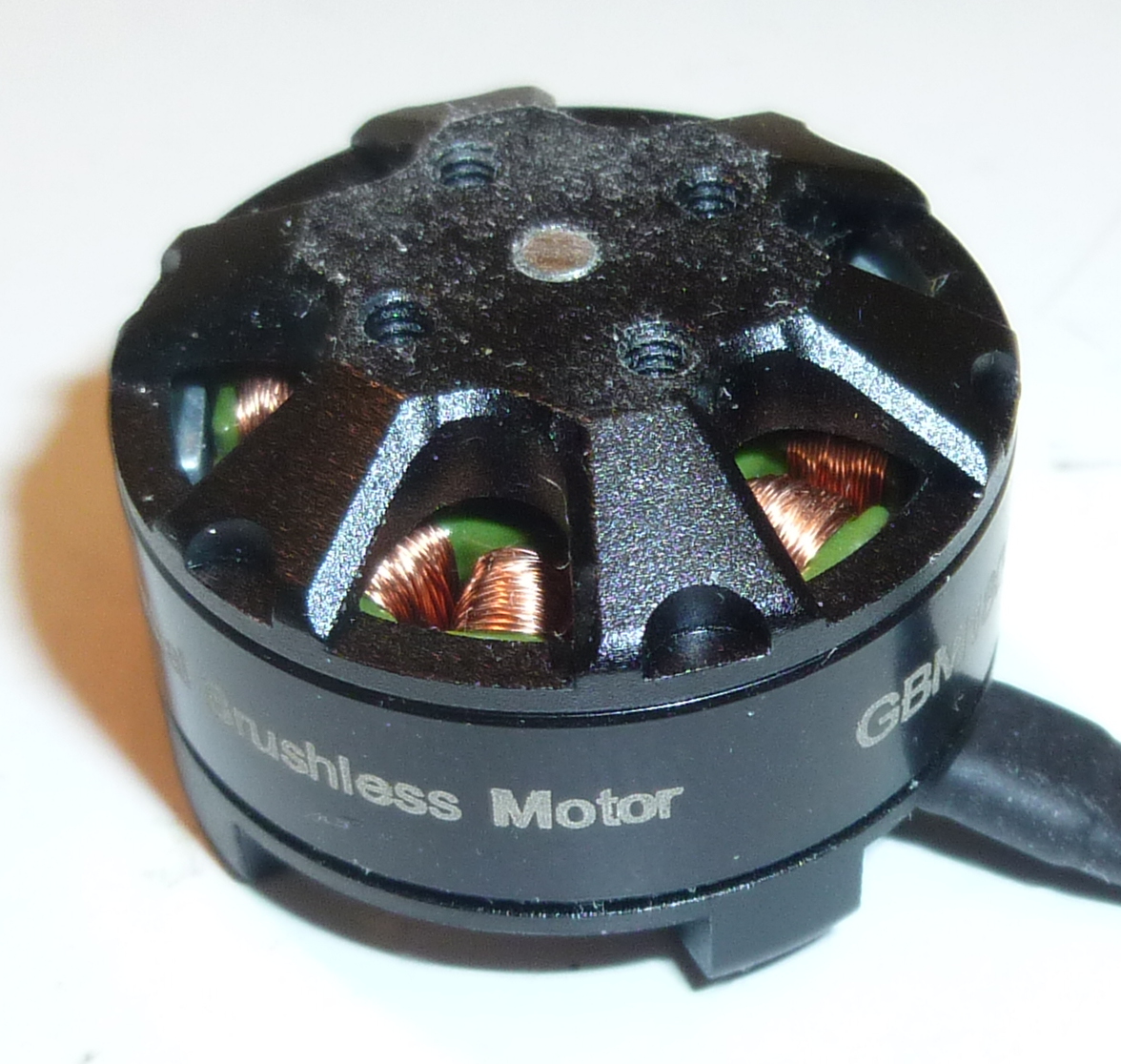

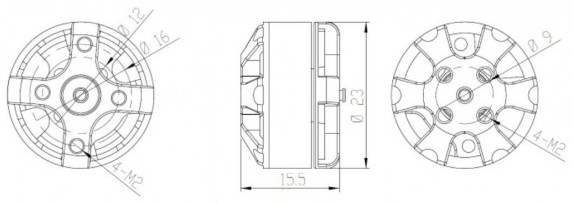

Maytech GBM1806 80T, CopterCentre 1806 (discontinued?)

This motor’s construction seems to have changed a bit over time, so for your motor the specs might be slightly different from the table.

coptercentre-1806-view1 olliwdiameter: 23 mm
height: 15.5 mm
weight: 18 g
winding: 12N14P
turns: 80
resistance: 18 Ohms (mine are 17.6 Ohm)
shaft diameter: 2 mm

sellers: CopterCentre (quite expensive)

coptercentre-1806-sketch olliw

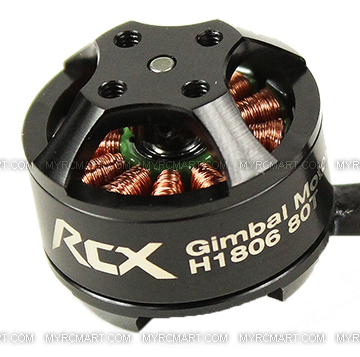

RCX H1806 80T

rcx1806-view2 olliwdiameter: 23 mm
height: 18.5 mm
weight: 18 or 20 g (?)
winding: 12N14P
turns: 80
resistance: 15 Ohm
shaft diameter: 2 mm

sellers: MyRcMart

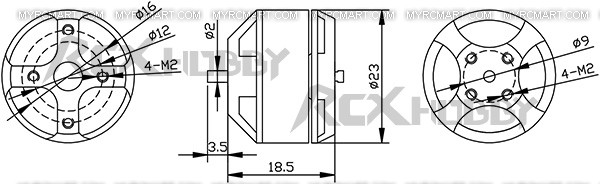

rcx-1806.sketch olliw

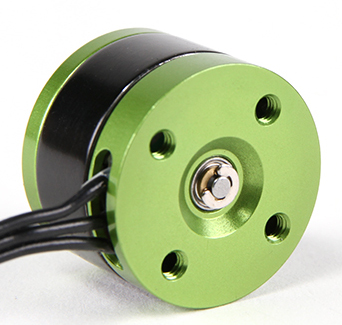

Multistar 1807 340KV

multistar-1807-view1 olliwdiameter: 22 mm
height: 15.6 mm
weight: 20 g
winding: 12N14P
turns: ?
resistance: 10 Ohms (mine are 10 Ohm)
shaft diameter: 2 mm

sellers: HobbyKing

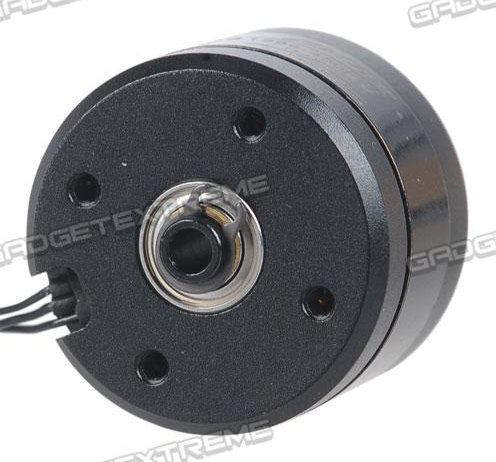

EMax 1806 450KV

emax-1806-view2 olliwdiameter: 23 mm
height: 17.3 mm
weight: 22 g
winding: 12N14P
turns: ?
resistance: 5.2 Ohms
shaft diameter: 4 mm, hollow shaft with 2.5 mm diameter

sellers: GoodLuckBuy

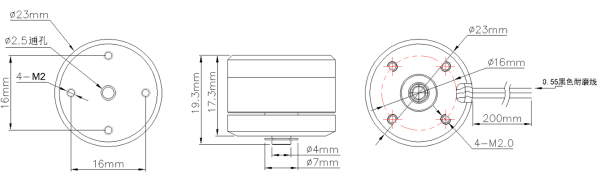

emax-1806-sketch olliw

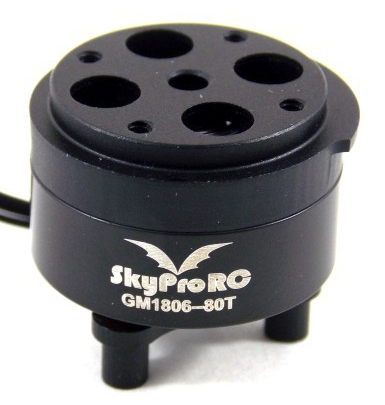

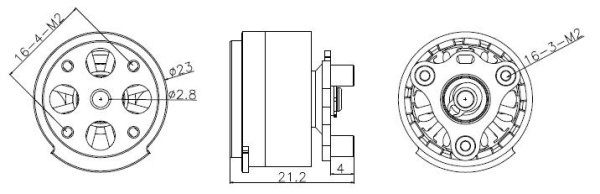

Skypro 1806 80T (discontinued)

This is a somewhat strange species of a motor.

skypro-1806-view1 olliwdiameter: 23 mm
height: 21.2 mm
weight: 17.5 g
winding: 12N14P
turns: 80
resistance: 5 Ohms
shaft diameter: 4 mm, hollow shaft with 2.8 mm diameter

sellers: fpvline

skypro-1806-sketch olliw

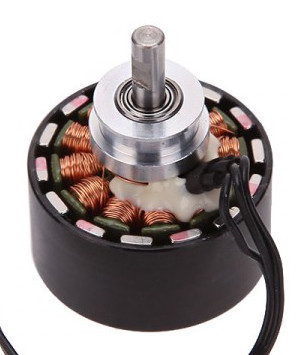

Walkera WK-WS-22-001(A/B)

This motor comes in different versions such as different cable lengths and colors, and a walkera-like confusing range of product numbers. Otherwise it seems to be always the same motor.

walkera-view1 olliwdiameter: 22.5 mm
height: 19.6 mm
weight: 23 g
winding: 12N14P
turns: ?
resistance: ? (mine are 13 Ohm)
shaft diameter: 3 mm

sellers: quite many

I could identify these different versions and product numbers:
WK-WS-22-001 G-2D-Z-02(P) 190mm wire (pitch)
WK-WS-22-001 G-2D-Z-02(P) 150mm wire (roll)
WK-WS-22-001 G-2D-Z-03(M) 130mm wire (pitch)
WK-WS-22-001 G-2D-Z-03(M) 170mm wire (roll)
WK-WS-22-001A G-3D-Z-06(M) (pitch)
WK-WS-22-001A G-3D-Z-05(M) (roll)
WK-WS-22-001B G-3D-Z-04(M) (yaw)


AX 2206 140KV

ax-2206-view1 olliwdiameter: 28 mm
height: 18 mm
weight: 32.3 g
winding: 12N14P
turns: ?
resistance: 11.3 Ohm
shaft diameter: 3 mm

sellers: HobbyKing


Skypro GM2204 100T (discontinued)

skypro-2204-view1 olliwdiameter: 27.8 mm
height: 13 mm
weight: 19.5 g
winding: 12N14P
turns: 100
resistance: ? Ohm
shaft diameter: ? mm, hollow shaft with 4 mm diameter

sellers: fpvline

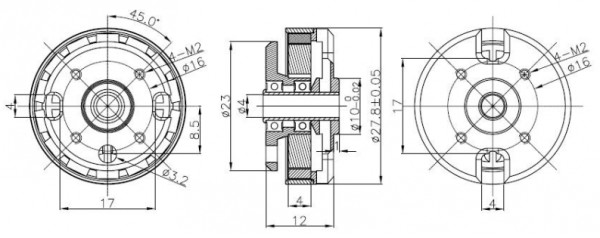

skypro-2204-sketch olliw


Skypro GM2206 80T (discontinued)

skypro-2206-view1 olliwdiameter: 27.8 mm
height: ? mm
weight: 24.5 g
winding: 12N14P
turns: 80
resistance: ? Ohm
shaft diameter: ? mm, hollow shaft with 4 mm diameter

sellers: fpvline

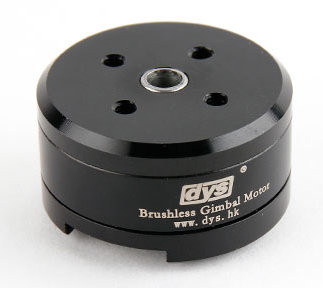

DYS BGM2606 90T, Foxtech 2606 90T

dys-2606-view1 olliwdiameter: 32 mm
height: 17.5 mm
weight: 39 g
winding: 12N14P
turns: 90
resistance: 8.5 Ohm
shaft diameter: ? mm, hollow shaft with 4 mm diameter

sellers: HobbyKing, foxtechfpv

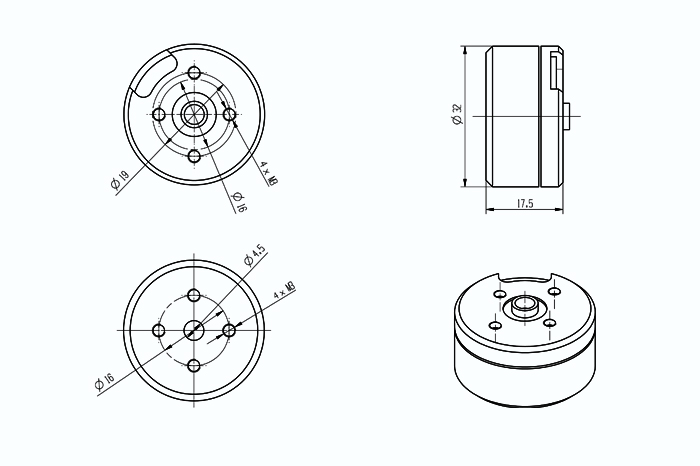

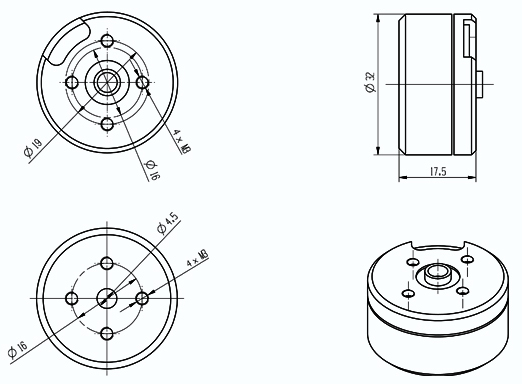

foxtech-2606-sketch olliw

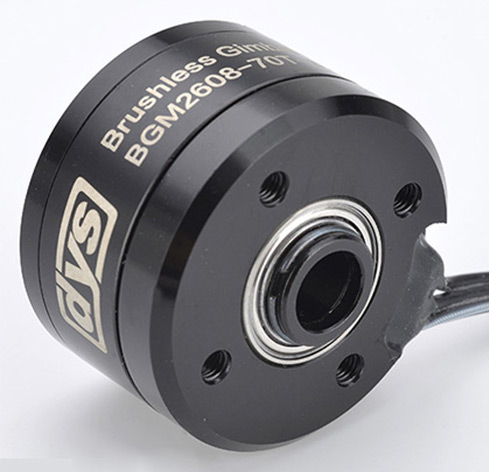

DYS BGM2608 70T 8.5, RCTimer 2608 70

dys-2608-view1 olliwdiameter: 32 mm
height: 20.5 mm
weight: 40 g
winding: 12N14P
turns: 70
resistance: 8 Ohm
shaft diameter: ? mm, hollow shaft with 6.5 mm diameter, slip ring available

sellers: GearBest, RCTimer

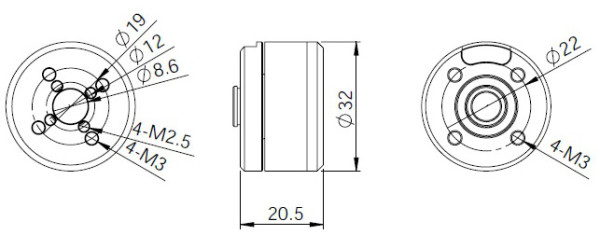

dys-2608-sketch olliw
